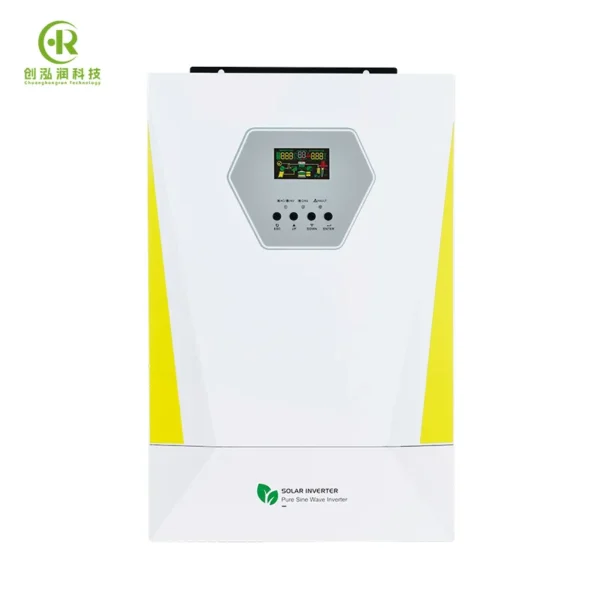

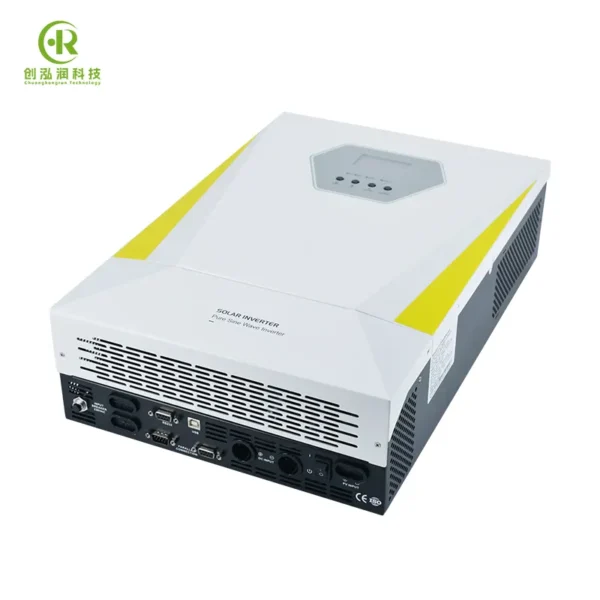

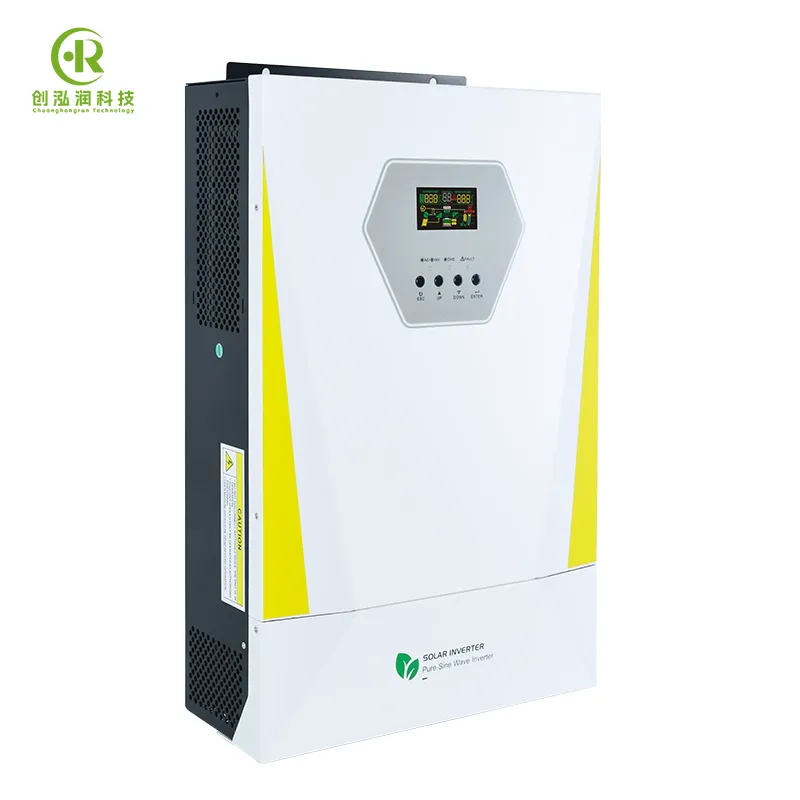

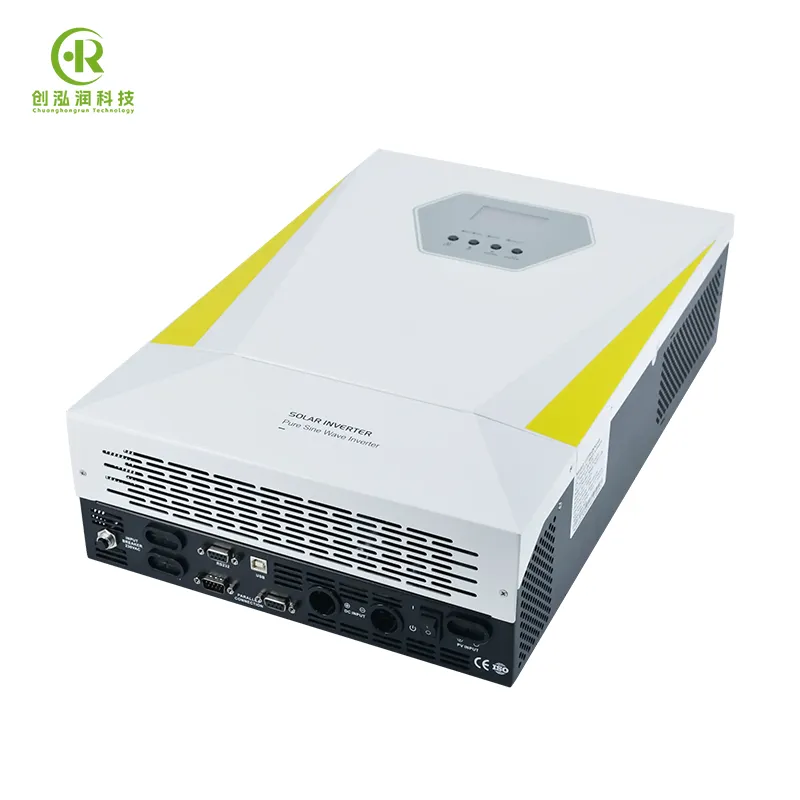

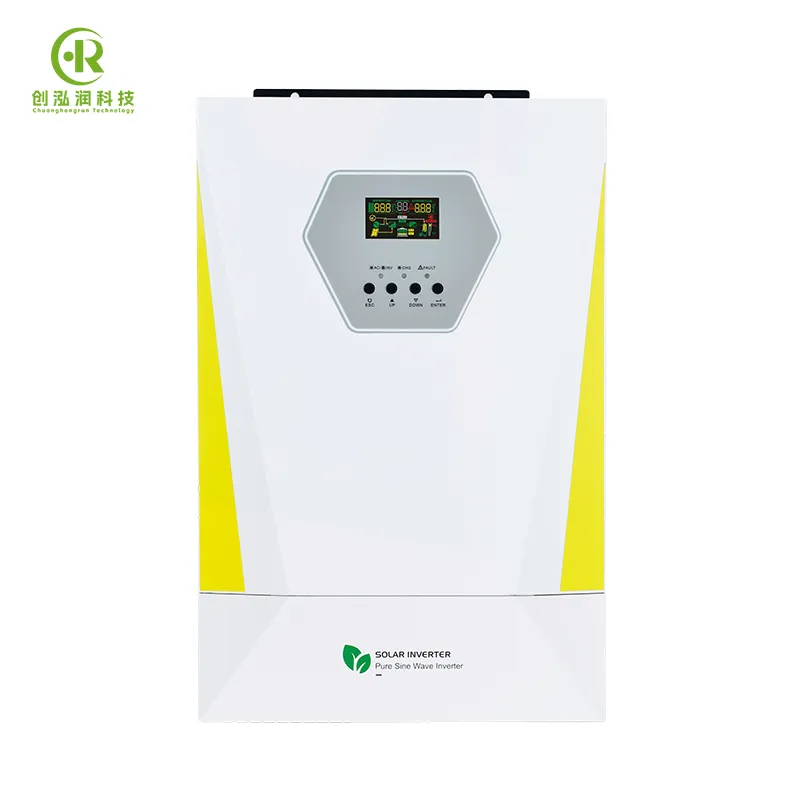

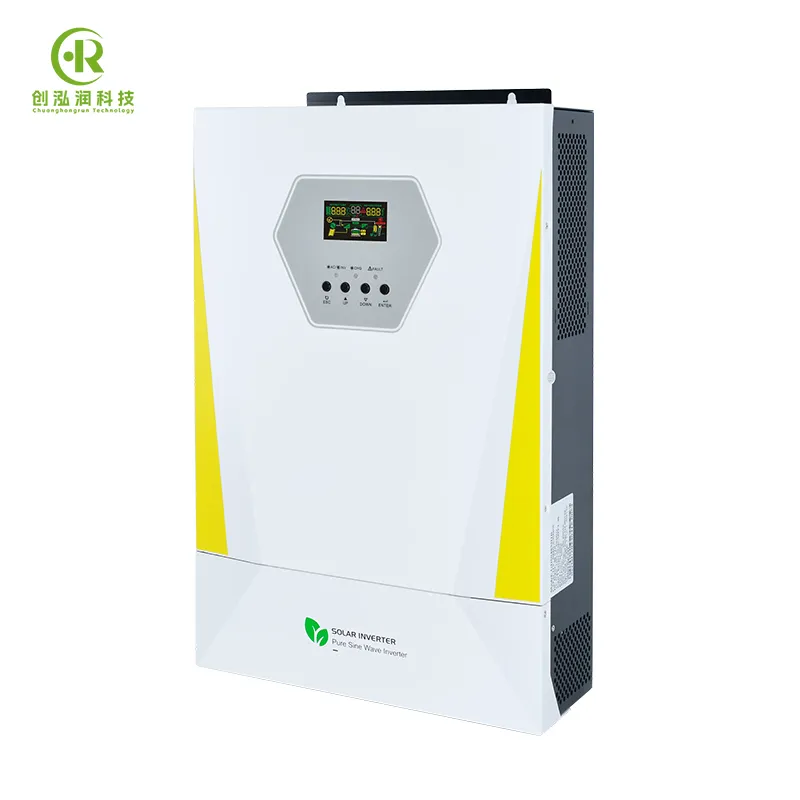

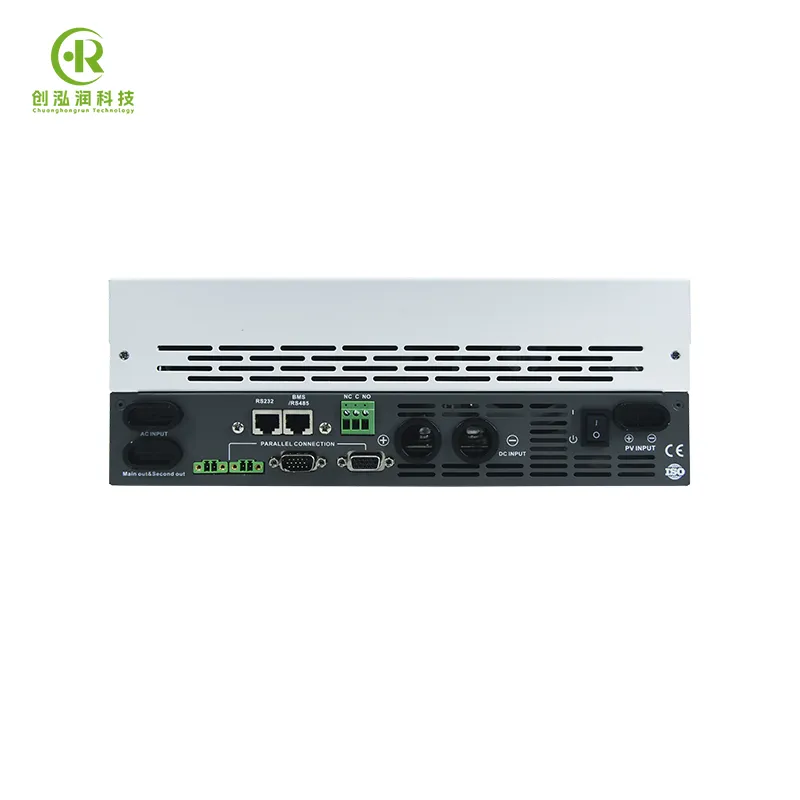

GD3024JMH–High-Frequency All-in-One Inverter

It has a lithium battery self-start function. Intelligent charging, safe and worry-free. It can be used immediately after charging, without activation. It can automatically identify and charge after power failure and restart.

  • Top-tier MPPT Technology
  • 500V High Voltage Input
  • Balanced & Stable Voltage Output
  • Battery-Free Operation Support
  • Up to 100A Charging Current

Request a Quote

Description

Design Advantages

  • Compact and lightweight chassis
  • Adjustable parameter settings
  • Lithium battery auto-start function
  • Short-circuit output protection
  • Simplified control panel
  • Multi-unit parallel capability (Up to 9 units for GD5548JMH)
  • Instant transfer switching (0ms)
  • WiFi/remote monitoring optional
  • Power Factor 1.0 (PF=1.0)
  • Full BMS lithium battery communication support
ModelGD3024JMH
Rated Output Power3000W
Input
Input MethodL+N+PE
Rated Input Voltage208/220/230/240V AC
Voltage Range154–264V AC ±3V (Normal Mode)
185–264V AC ±3V (UPS Mode)
Frequency Range50Hz/60Hz (Auto-sensing)
Output
Output Voltage208/220/230/240V AC ±5%
Output Frequency50/60Hz ±0.1%
WaveformPure Sine Wave
Transfer Time (Adjustable)10ms (IT Equipment)
20ms (Home Appliances)
Peak Power6000VA
Peak Efficiency (Battery Mode)>94%
Battery
Rated Voltage24V DC
Constant Voltage Charge28.2V DC
Float Charge Voltage27V DC
PV Charger
PV Charging MethodMPPT
Max PV Input Power4000W
MPPT Input Voltage Range120–500V DC
Max PV Input Voltage500V DC
Max PV Charging Current100A (80A)
Max Charging Current100A (80A)
Display & Interfaces
LCD InterfaceDisplays operation mode, load, input/output, etc.
RS232 InterfaceSPIN/Pitch 2.0mm, 2400 bps
Expansion Slot2×5PIN (2.54mm pitch)
Supports Li-ion BMS, WiFi, Dry Contact cards
Parallel FunctionNot Supported
Environmental
Operating Temperature0–40°C
Operating Humidity20–95% (Non-condensing)
Storage Temperature-15–60°C
Altitude Limit≤1000m (Max 4000m, Ref: IEC 62040)
Noise Level<50 dB
