Description

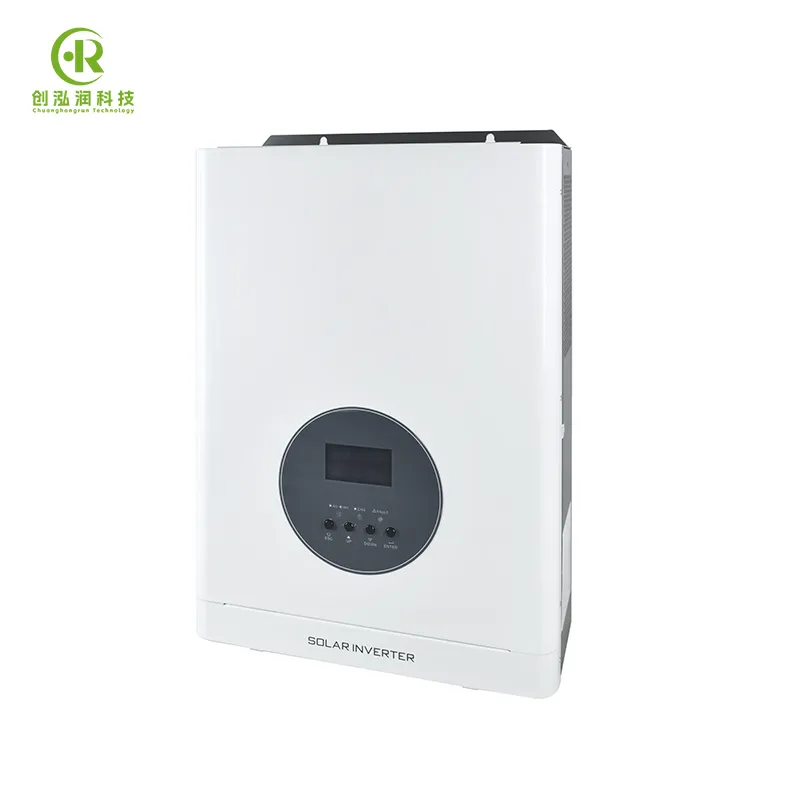

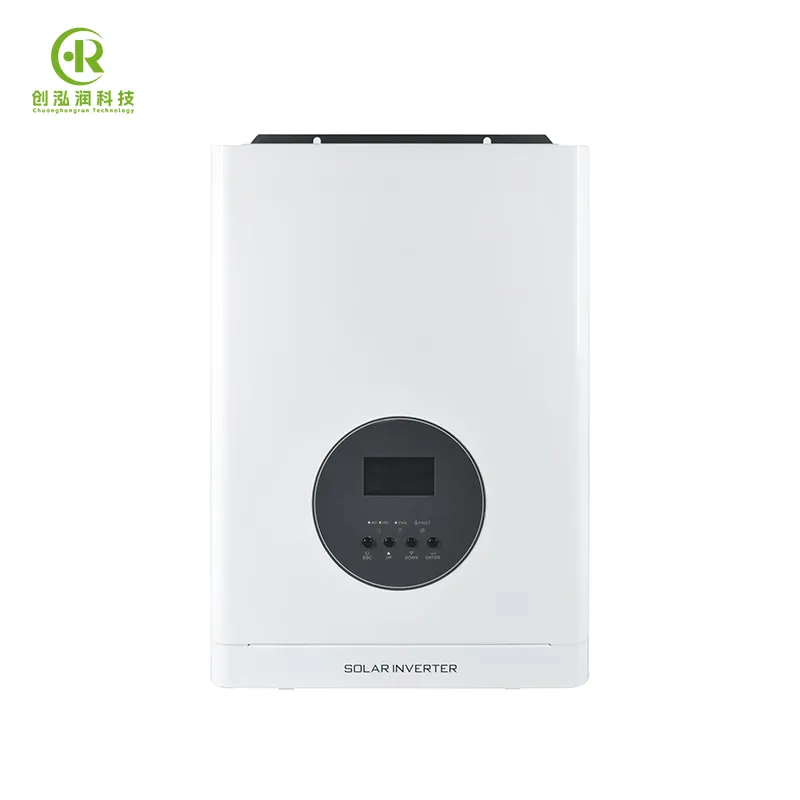

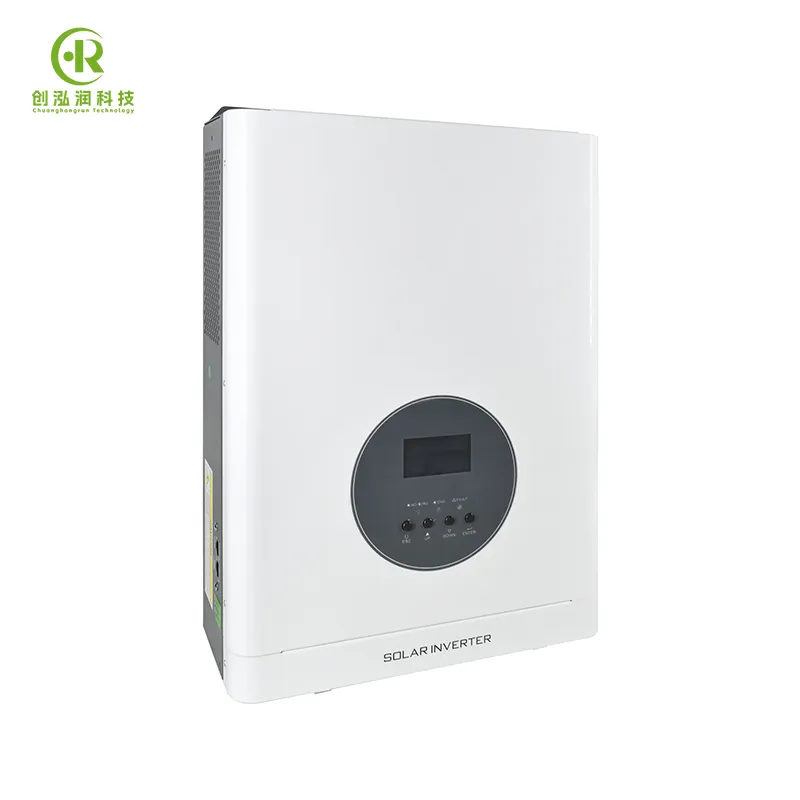

Low-Frequency Energy Storage Inverter (Grid/Parallel Version)
Key Features: Low-frequency toroidal transformer (low no-load loss, high anti-interference), pure sine wave output, supports 9-unit parallel connection (total 90kW), powers heavy loads like AC units/pumps.
Smart Energy Control: AI-optimized charging, BMS communication (20+ lithium battery protocols), WiFi/GPRS remote monitoring, generator auto-start dry contact.
High Efficiency: Dual MPPT solar input (max 120A charging), wide PV voltage range (60-200VDC customizable), grid/off-grid auto-switching, 98% conversion efficiency.
Rugged Protection: 3:1 peak load capacity, multi-protection (overload/lightning/moisture), operates in -10°C~40°C harsh conditions.
Applications: Home energy storage, off-grid power stations, emergency backup for high-demand scenarios.
| Power Input | 230VAC (Standard) |
| Input Voltage Range | 90-275VAC±3V (Default APL mode) 170-275VAC±3V (UPS mode) |
| Input Frequency | 50/60Hz±5% |
| Rated Output Power | 5000W |
| Output Voltage (City Grid) | Same as input voltage |
| Output Frequency (City Grid) | Same as input frequency |
| Reverse Output Voltage | 230VAC±10% |
| Inverter Output Frequency | 50Hz or 60Hz±1% |
| Output Waveform | Pure Sine Wave |
| Battery Type | External lead-acid battery or water battery or lithium battery |
| Battery Voltage | 48VDC |
| Constant Charging Voltage (Adjustable) | 56.4VDC (Adjustable range: 48V-61V) |
| Float Charging Voltage (Adjustable) | 54VDC (Adjustable range: 48V-61V) |
| Maximum PV Input Power (MPPT) | 3200W |
| PV Input Voltage Range (MPPT) | 60-150VDC |
| Maximum PV Open Circuit Voltage | 150VDC |
| Optimal Vmp Operating Range | 60-105VDC |
| Maximum Solar Current | 60A |
| Maximum AC Charging Current | 30A |
| Switching Time | ≤10ms (UPS mode) / ≤20ms (APL mode) |
| Load Crest Ratio | (MAX) 3:1 |
| Environmental Transformer (Standby) | 48W |
| Protection Features | Under AC power: input overcurrent air switch protection Under inverter: overload protection, short circuit protection, low voltage protection, battery reverse connection protection (fuse) Color segment code screen plus LED display |
| Status Display | You can check parameters such as AC voltage, AC frequency, PV voltage, PV current, output voltage and frequency, battery voltage, load current, etc. by turning the page. LED displays AC power, charging status, inverter status, fault status |
| Audible Alarm | The buzzer has different alarm sounds according to the fault code, and the long and short sounds are used to distinguish |

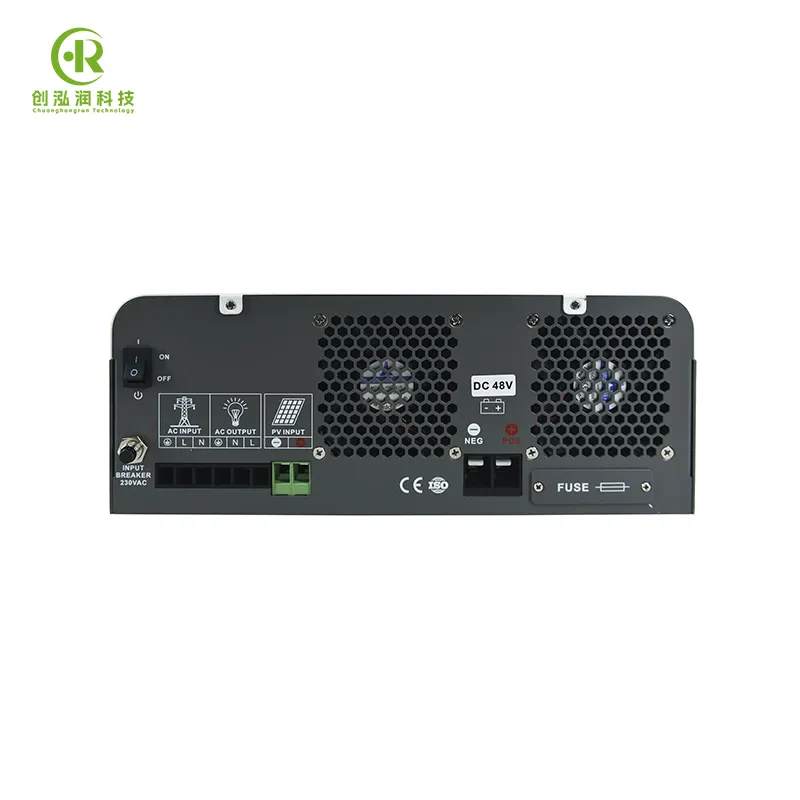

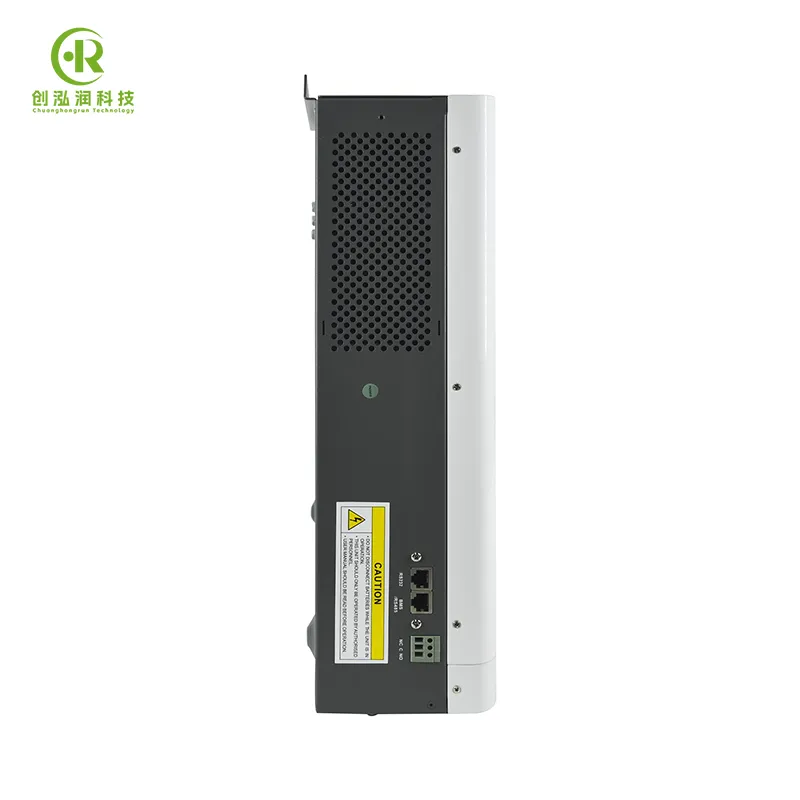

| Communication Interface | RS232, lithium battery BMS communication, parallel interface, dry contact card |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 45°C |
| Relative Humidity | 20%-95% (Non-condensing) |
| Noise Level | ≤45dB |
